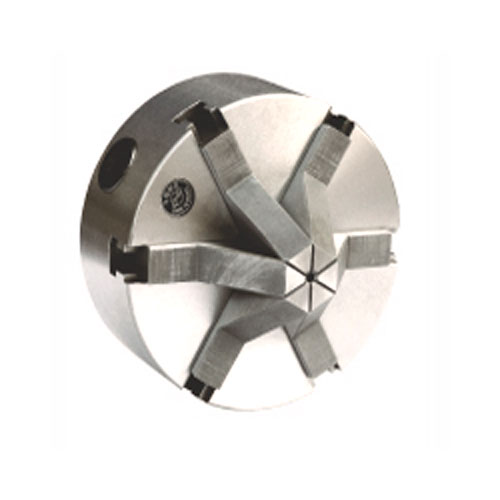

產品：K13
產品特性:
■特點：
☆短圓柱連接形式。
☆K13型卡盤配帶臺階形卡爪。
☆K13-Ⅱ型卡盤配帶斜坡形卡爪。
☆適用于各種薄壁工件的夾持加工。
☆尤其適用于各種柄類刃具的磨削夾持。
■Specificity:
☆Short cylindrical center mounting.
☆K13 chucks are matched with stepped jaws.
☆K13-Ⅱ chucks are matched with sloped jaws.
☆Suitable for clamping and machining the thin-walled components.
☆Especially suitable for machining all kinds of cutting tools with handles.
產品詳情

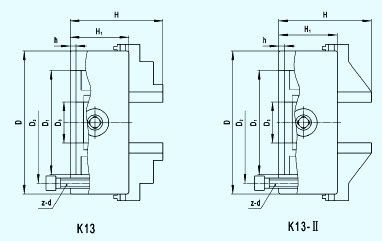

■尺寸、性能參數 Dimension 、Characteristic Parameters
|
規格
Size
|
D
|
D1
|
D2
|
D3
|
H
|
H1
|
h
|
z-d
|
凈重kg
Net WT.
|
|
3″
|
80
|
55
|
66
|
16
|
66
|
50
|
3.5
|
3-M6
|
1.9
|
|
4″
|
100
|
72
|
84
|
26
|
73
|
53.5
|
3.5
|
3-M8
|
3.2
|
|
5″
|
130
|
100
|
115
|
35
|
86
|
60
|
3.5
|
3-M8
|
5.6
|
|
6″
|
165
|
130
|
145
|
42
|
96.5
|
66.5
|
4.5
|
3-M8
|
8.5
|
|
8″
|
200
|
165
|
180
|
65
|
109
|
75
|
5
|
3-M10
|
16
|
|
10″
|
252
|
206
|
226
|
80
|
120
|
80
|
5
|
3-M12
|
26
|
|
325
|
325
|
272
|
296
|
100
|
153.5
|
96
|
12
|
3-M16
|
49
|
|
380
|
380
|
325
|
350
|
135
|
155.5
|
98
|
6
|
3-M16
|
65
|
|
