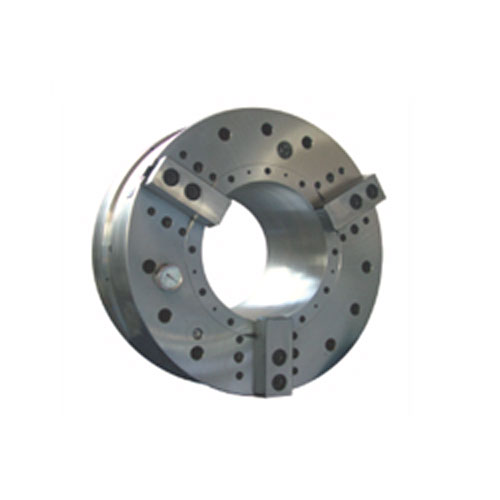

產品：KFD53
產品特性:
■特點：
☆氣缸與卡盤連為一體,機床前后可各配一臺卡盤。
☆斷開氣源,方可工作（內含逆止閥,夾緊可靠）。
☆可自定心來件緊，也可浮動夾緊。
☆適用于大口徑管子螺紋加工，管子切斷，焊接等。
☆是數控管子加工機床配套的專用卡盤。
■Specificity:
☆Pneumatic cylinders and chucks are jointed into an integral and a set of chuck can be equipped in front or rear of the machine.
☆The chucks can just work when switching off pneumatic source and be equipped with inverted valve inside and with high clamping reliability.
☆I(lǐng)t can clamp in both selft-centering and floating.
☆Suitable for large diameter pipe thread machining , pipe cutting and welding etc.
☆The product is a special chuck matched with the pipe CNC machine tool.
產品詳情
■性能參數Characteristic Parameters
|
規格
Size
|
活塞行程Lmax
Piston stroke
|
爪行程（直徑）
Jaw stroke(Dia)
|
爪浮動量mm
Jaw floating length
|
最大使用壓力Mpa
Max.acting pressure
|
極限轉速
r/min
Max.speed
|
自定心夾緊
Self-centering clamping
|
浮動夾緊力
Floating clamping force
|
凈重Kg
Net WT.
|
|
KFD53730
|
45
|
46
|
6
|
0.6
|
600
|
160
|
80
|
780
|
|
