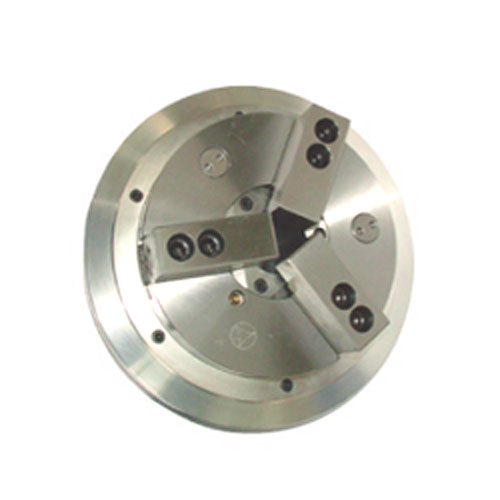

產品：KT53
產品特性:
■特點：
☆短圓柱連接形式。
☆氣缸與卡盤連為一體,機床前后可各配一臺卡盤。
☆通孔大,適用于焊接設備和管子加工機床。
☆斷開氣源,方可工作;內含逆止閥,夾緊可靠。
☆具有二爪、三爪、四爪等形式。
■Specificity:
☆Short cylindrical center mounting.
☆Pneumatic cylinders and chucks are joined into an integral and a set of chuck can be equipped in front or rear of the machine.
☆With large thru-hole and suitable for pipe welding facility , pipe-processing machine tool.
☆The chucks can just work when switching off pneumatic source and be equipped with inverted valve inside and with high clamping reliability.
☆We can supply two-jaw , three-jaw and four-jaw chucks as requested.
產品詳情

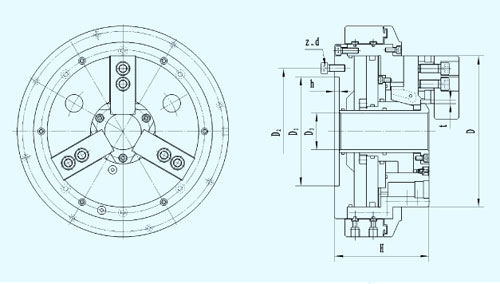

■尺寸、性能參數 Dimension、Characteristic Parameters
|
規格
Size
|
D
|
D1
|
D2
|
D3
|
h
|
H
|
t
|
z-d
|
最大使用壓力
Max.pressure
|
極限轉速
r/min
Max. Speed
|
|
160
|
160
|
125
|
150
|
38
|
6.5
|
130.5
|
4
|
6-M10
|
0.8
|
3000
|
|
200
|
215
|
155
|
180
|
52
|
6.5
|
134
|
4.5
|
6-M10
|
0.8
|
2500
|
|
250
|
250
|
185
|
210
|
68
|
6.5
|
161
|
5
|
6-M10
|
0.8
|
2000
|
|
315
|
315
|
260
|
285
|
100
|
7
|
186
|
5.5
|
6-M16
|
0.8
|
1500
|
|
