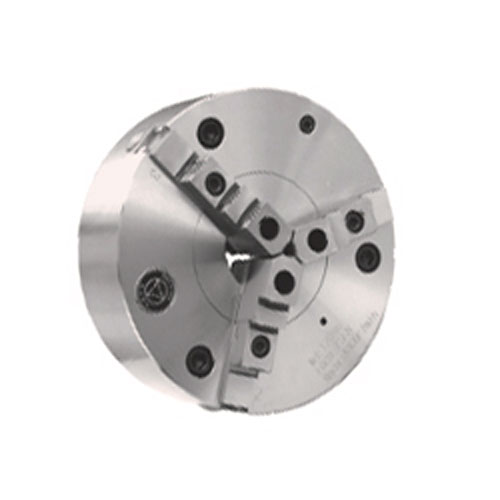

產品：K80
產品特性:
■特點：
☆短圓柱連接形式。
☆高轉速、高夾緊力、高精度、快換爪。
☆手動夾緊，手動換爪。
☆具有夾緊力補償性能
■Specificity:
☆Short cylindrical center connection.
☆High speed, high gripping force, high accuracy and quick jaw change.
☆Manually clamping and jaws changing.
☆With gripping force compensation.
產品詳情

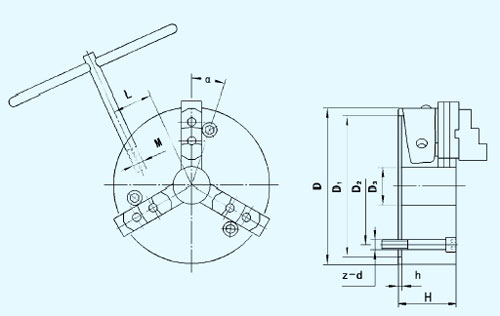

■尺寸參數 Dimension Parameters
|
規格
Size
|
D
|
D1
|
D2
|
D3
|
h
|
H
|
L
|
α
|
M
|
z-d
|
|
200
|
206
|
185
|
164
|
52
|
5
|
86
|
53.5
|
18°
|
12
|
3-M12
|
|
250
|
255
|
235
|
200
|
75
|
6
|
98
|
67
|
19°30′
|
14
|
3-M16
|

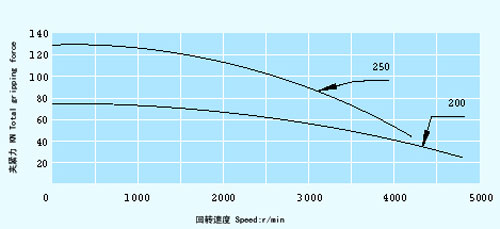

■性能參數 Characteristic Parameters
|
規格D
Size
|
輸入力矩Nm
Max.Input torque
|
最大夾緊力kN
Max. gripping force
|
極限轉速r/min
Max. speed
|
夾緊范圍
Clpmping range
|
撐緊范圍
Jamming range
|
凈重Kg
Net WT
|
|
200
|
120
|
75
|
4800
|
7-207
|
71-214
|
20
|
|
250
|
160
|
130
|
4200
|
8-253
|
99-261
|
35
|
|
