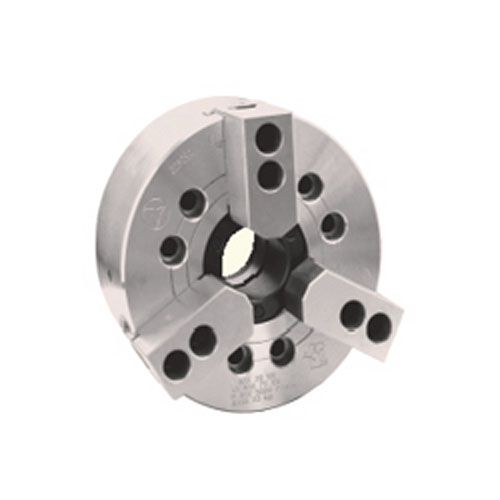

產品：K55-IV
產品特性:
■特點：
☆短圓柱連接形式。
☆大通孔，高轉速。
☆適宜盤類、棒類工件的精加工。
■Specificity:
☆Short cylindrical center mounting.
☆Large through-hole ,high rotation speed.
☆The chucksare especially suitable for precision machining of the plate and rod workpieces.
產品詳情

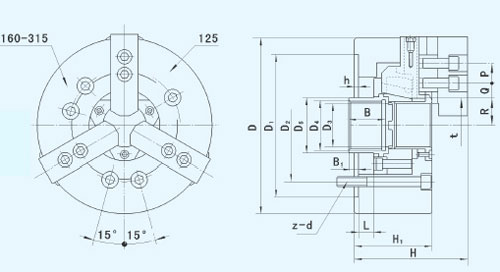

■尺寸參數 Dimension Parameters
|
規格
Size
|
D
|
D1
|
D2
|
D3
|
D4
|
D5
|
H1
|
H
|
h
|
P
|
Qmax
|
Qmin
|
Rmax
|
Rmin
|
B
|
B1max
|
B1min
|
z-d
|
|
125
|
135
|
110
|
82.6
|
33
|
M40×1.5
|
48
|
57
|
99
|
4
|
16
|
16
|
3
|
30.7
|
28
|
20
|
0
|
-13
|
3-M10
|
|
160
|
169
|
140
|
140.8
|
45
|
M55×2.0
|
61
|
80
|
123
|
4
|
20
|
25
|
8
|
33.5
|
30.5
|
22
|
-4
|
-21
|
6-M10
|
|
200
|
210
|
170
|
133.4
|
52
|
M60×2.0
|
68
|
95
|
145
|
5
|
24
|
35
|
10
|
40.5
|
37
|
25
|
-4
|
-24
|
6-M12
|
|
250
|
254
|
220
|
171.4
|
75
|
M85×2.0
|
93
|
100
|
152
|
5
|
28
|
38
|
10
|
53.75
|
49.5
|
25
|
-5
|
-25
|
6-M16
|
|
315
|
315
|
300
|
235
|
100
|
M110×2.0
|
120
|
115
|
182
|
6
|
32
|
43
|
16
|
72.3
|
67
|
30
|
-6
|
-31
|
6-M20
|

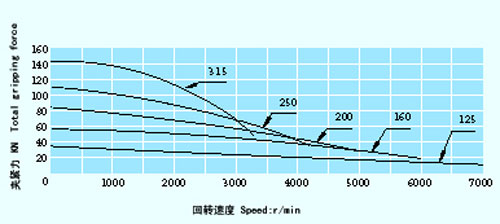

■性能參數 Characteristic Parameters
|
規格D
Size
|
楔心套行程Lmax
Axial wedge stroke
|
爪行程（直徑）
Jaw stroke(Dia.)
|
許用推拉力kN
Max. draw pull
|
最大夾緊力kN
Max. gripping force
|
極限轉速r/min
Max. speed
|
夾緊范圍
Clpmping range
|
撐緊范圍
Jamming range
|
推薦油缸
Rec.
cylinder
|
凈重Kg
Net WT
|
|
125
|
13
|
5.4
|
14
|
36
|
7000
|
8-110(125)
|
50(25)-110(125)
|
P25 105
|
8
|
|
160
|
17
|
6.0
|
19
|
57
|
6000
|
12-140(160)
|
60(30)-140(160)
|
P25 125
|
13.7
|
|
200
|
20
|
7.0
|
29
|
86
|
5000
|
16-180(200)
|
75(36)-180(200)
|
P25 155
|
24
|
|
250
|
20
|
8.5
|
42
|
111
|
4200
|
25-230(250)
|
96(45)-230(250)
|
P25 180
|
40
|
|
315
|
25
|
10.6
|
55
|
144
|
3300
|
50-300(315)
|
110(36)-300(315)
|
P25 205
|
66
|
產品備注
※表中（）數值適用于軟卡爪卡盤。
※The value in the parentheses on the above table for soft jaw chucks.
|
