產品：K49
產品特性:
■特點：
☆具有拉動工件的功能，在加工后可對工件進行深度加工。
☆具有防塵結構，卡盤內部不會有異物進入，表現出優良的耐久性。
☆由于采用了TOP JAW 的更換方式，工藝變更十分便利。
■Specificity:
☆I(lǐng)t draws down the workpieces to the locater and heavy cutting is possible.
☆With the structure of the dust-proof , no foreign substance can be infiltrated into inside of the chuck and is superior in durability.
☆Various top jaw for different workpieces can be readily exchanged..
產品詳情

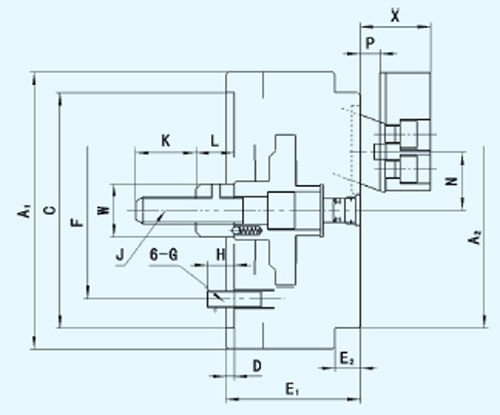

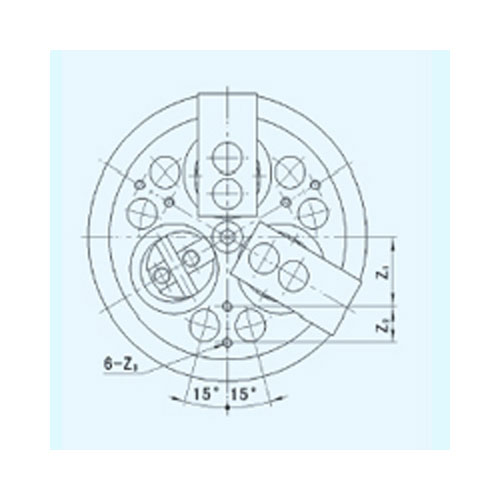

■尺寸參數 Dimension Parameters
|
規格
Size
|
A1
|
0
A2-0.05
|
C(H7)
|
D
|
E1
|
E2
|
F
|
G
|
H
|
J
|
J1
|
K
|
LMAX/MIN
|
N MAX/
MIN
|
P MAX/
MIN
|
W
|
X MAX/
MIN
|
Z1
|
Z2
|
Z3
|
|
160
|
165
|
140
|
140
|
5
|
80
|
15
|
104.8
|
M10
|
16
|
M16
|
35
|
36
|
31/23
|
37.9/35
|
12/4
|
32
|
42/34
|
40
|
20
|
M6-11
|
|
200
|
210
|
180
|
190
|
5
|
95
|
17
|
133.4
|
M12
|
18
|
M20
|
40
|
36
|
38/28
|
46.6/43
|
14/4
|
38
|
55/45
|
50
|
25
|
M8-15
|
|
250
|
254
|
220
|
230
|
5
|
110
|
20
|
171.4
|
M16
|
22
|
M24
|
50
|
46
|
47/32
|
59.7/52.5
|
19/4
|
50
|
65/50
|
60
|
30
|
M8-15
|
■性能參數 Characteristic Parameters
|
規格
Size
|
爪行程t
（直徑）
Jaw stroke
(Dia.)
|
柱塞行程
Plunger stroke
|
最大、最小夾緊直徑（外徑）
Recommended outside chucking diameter for standard soft blank jaw
|
最高使用轉數r/min
Max. speed
|
許用推拉力kN
Max. draw pull
|
最大夾緊力kN
Max gripping force
|
凈重kg
Net WT.
|
|
|
|
|
160
|
5.8
|
8
|
140
|
40
|
5000
|
14.7
|
24.5
|
13
|
|
200
|
7.2
|
10
|
180
|
48
|
4500
|
24.5
|
44.4
|
26
|
|
250
|
10.8
|
15
|
220
|
65
|
4000
|
34.3
|
58.8
|
43.5
|
|
